Industrial Filters

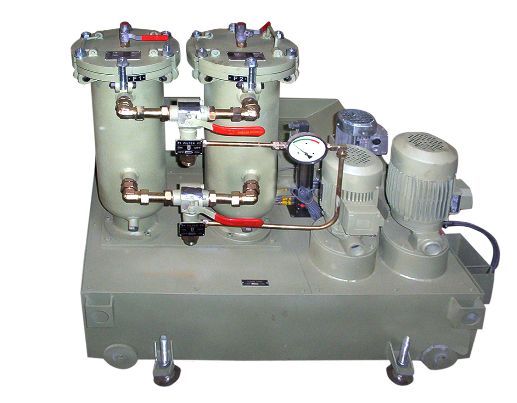

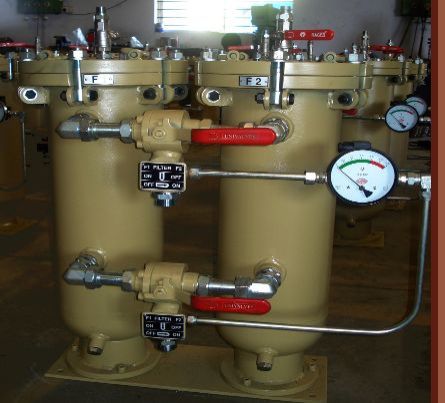

Bag filters are manufactured in simplex, duplex and multiplex types. These are manufactured in carbon steel and stainless steel. The duplex system is supplied with complete change over valves and differential pressure gauge with chocking indication for the replacement of filter element or bag. The working pressure will be from 0-100 bar and level of filtration 1 micron to 800 microns,viscocity ranging 1 cps to 60,000 cps. The application is in chemical and machine tool industries for filtration of industrial coolants, hydraulic oils and lubrication oils.

Cartridge filters are with different type elements enables large contamination retaining capacity which is a distinct advantage over conventional cylindrical cartridge elements. Filtration level up to 7 microns can be achieved. Available in 50-1000 LPM capacity.

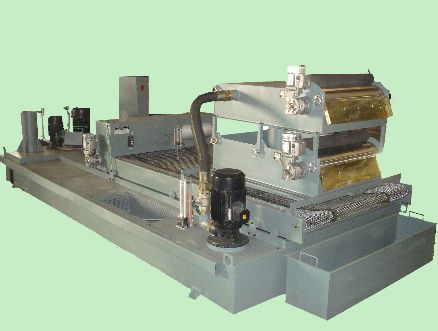

Universal compact band filter is designed after decades of experience and understanding the needs for latest technology in filtration. As the name suggests the system requires 70% less space than conventional band filters with higher degree of filtration utilizing minimum filter media.

The specially designed conveyor belt of semi circular shape allows greater filter area and efficiency in working. The media is sealed from all sides and there is no chance of contamination escape. The higher head of coolant that gets stored in the filter offer better filtration through the media as compared to switch mechanism. Needs almost no manual attention. Ideally suited for machine tools and process industries.

It can also be supplied with magnetic coolant filters and chilling units for higher level of filtration. Capacity can be supplied upto 2000 lpm and above.

Manufactured in 3 different type of drums. Plain, Serrated and Ring type for effective removal of ferrous contaminations from coolant. The geared motors of heavy duty type and gives trouble free service for number of years. Capacity 30 lpm. To 3000 lpm. The above magnetic separator capacity is 3800 ltrs/min.

Oil centrifuge filters are specially useful in separating fine ferrous and non ferrous dust mixed with the viscous   liquids,  suitable for honing, grinding machines where viscous coolants are used. Capacity  50 lpm to 500 lpm.

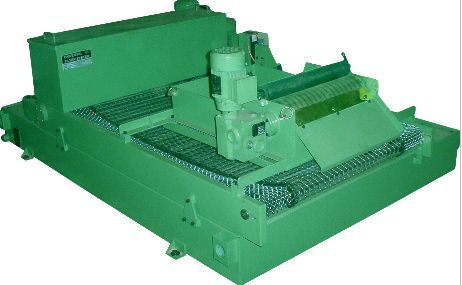

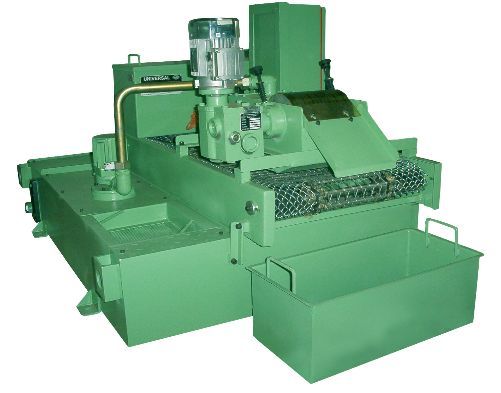

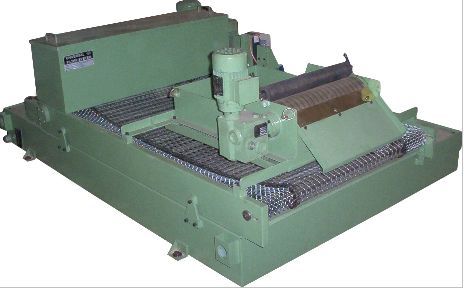

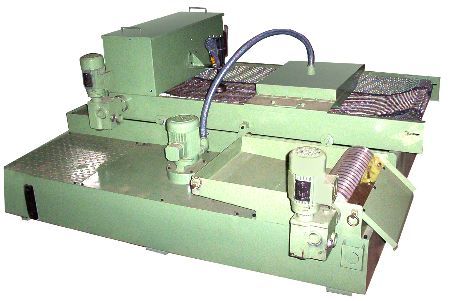

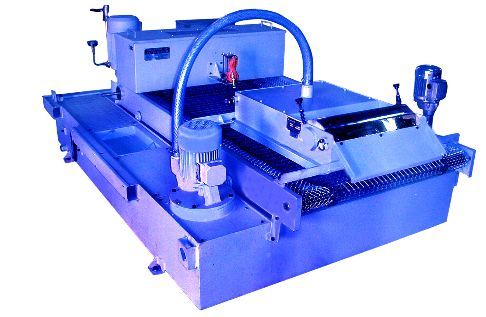

Recommended for filtering coolant on grinding, honing and super finishing applications. The coolant first gets filtered on magnetic separator where 90% of the ferrous particles are removed. Then the coolant flows through filter paper and remaining ferrous and non-ferrous particles are separated. The unit functions automatically when this sludge accumulates on the paper.capacity:30 lpm to 6000 lpm. These systems can also be supplied with chilling units.

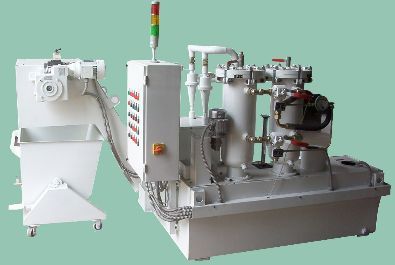

Rotary drum filters are very effective for filtration and separating of alluminium, cast iron and steel chips. The upward flow principle adopted gives positive filtration effect and separates sludge on a scraper conveyor simultaneously. Flow rates available:100 lpm to 1000 lpm.

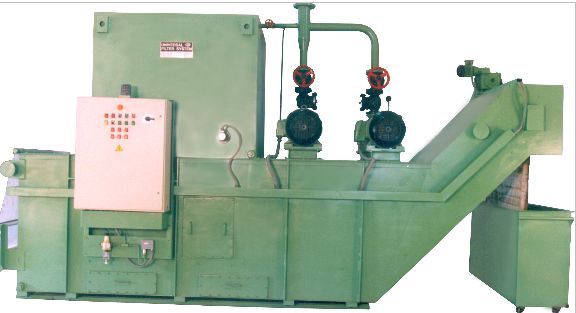

Universal vacuum filters manufactured with latest technology and has proved their capability of removing sludge contamination from water soluble oils, synthetic coolants, grinding oil and other liquids. The vacuum filter is fully automatic filtration system and available upto 30,000 lpm Capacity for centralized  filtration system. Can be supplied with coolant chillers and magnetic separator attachments.
